BLUEWAV Electrolytic Seawater Chlorine Equipment Testing

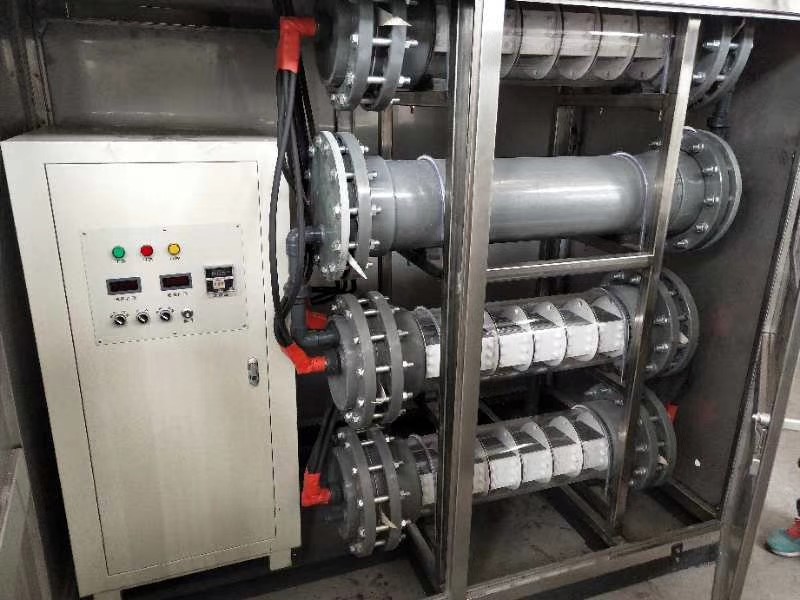

Bluewav electrolytic seawater chlorine production device is composed of filtration system, sodium hypochlorite generation system, sodium hypochlorite storage and hydrogen discharge system, dosing system, pickling system and other process parts as well as matching electrical and automatic control system.

Process flow

The seawater is lifted from the seawater intake pump station by the seawater booster pump, into the automatic flushing filter, filtered again, injected into the BLUEWAV sodium hypochlorite generator electrolytic cell for electrolysis, and the generated sodium hypochlorite solution enters the sodium hypochlorite storage tank. When the liquid level of the sodium hypochlorite storage tank reaches a certain height, the sodium hypochlorite solution is added to the dosing point through the continuous dosing pump and the impact dosing pump. The by-product hydrogen produced in the electrolysis process of the sodium hypochlorite generator is sent into the sodium hypochlorite storage tank together with the electrolyte, the gas-liquid separation is carried out in the storage tank, the air is blown into the storage tank through the fan, the hydrogen concentration is diluted to less than 1%, and then the storage tank top hood is safely discharged to the atmosphere. At the same time, the electrolytic process will produce calcium and magnesium scale attached to the electrolytic cell, and the system is equipped with a pickling system to regularly pickling the electrolytic cell.

When our customers receive the equipment, how should they debug and accept the electrolytic cell?

The testing and receipt of equipment

Name of project
Time of debugging
Name of equipment	The test of performance
Sodium hypochlorite generator	Name of parameter	Demand of agreement	Result of test
	Name of parameter	Demand of agreement	#1	#2
	Flow of seawater（brine）（m³/h）
	decomposition voltage (V)
	Electricity of electrolytic capacitor (A)
	Thickness of NaClO(g/l)
	Rate of production(kg/h)
Name of itemizing function	Test of function
	Settings	Function of control point	Result of checkout
	Settings	Function of control point	#1	#2
Temperature
Pressure
Flow
Level
Current
Voltage
conclusion of test： According to the sampling and testing of the sodium hypochlorite generator, the results meet the requirements of the protocol, the equipment runs normally, and the on-site personnel are trained, so far, the on-site commissioning work is completed.
Vendor: Bluewav Technology Co.,Ltd. Representative(Signing):
Purchaser: Representative(Signing):
