Bluewav Technology Co.,Ltd

Products >> Hypochlorous Acid Anolyte Generator >> 100ppm 200ppm 500ppm Hypochlorous Acid Generator

Main Features:

  1. Input: Salt, Electricity, Water
  2. Output: HOCL Anolyte: 50-100ppm,50-200ppm
  3. PH: 4.5 -6.5
  4. ORP:1000-1200mV
  5. Certificate: ISO, CE

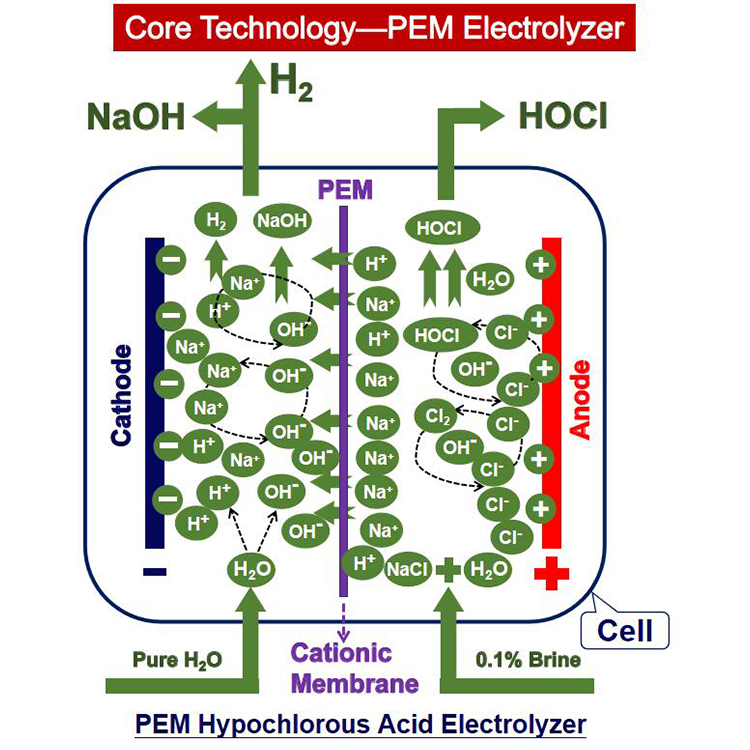

Principle of brine electrolysis

Our equipment electrolyzes a certain proportion of diluted brine (NaCl) in a special electrolytic module. In the advanced  membrane, the Anode side produce output HOCL/Anolyte/EOW Electrolyzed Oxidizing Water .

Applications :

  1. Hospital Medical equipment disinfection
  2. Skin disinfection
  3. Food/Seafood disinfection
  4. Airport/Hotel/School/Train/Bus/Office surface disinfection
  5. Animal stockbreeding






Machine  Datasheet:

Dimensions

1000X750X1350mm

Land Size (Area)

3000X3000X2500mm

HOCL Concentration

50-500ppm,

500-1000ppm

Production Capacity

50L/H - 2000L/H

Natural Acidic (Range)

pH4.5 ~6.5

Total Power Consumption

1KW-3KW

Electricity Supply

AC 220V /50 -60 Hz

AC 380V /50 -60 Hz

Power Distribution Req.

≥ 3000W

Available Chroline

50mg ~500mg Per Liter

100mg ~1000mg Per Liter



Main features for HCIO acid water Generator,
1- Manual and Full Automatic Working, only 1 person required.

2- LED/LCE touch Screen operation, remote control by app on iPHONE/Android

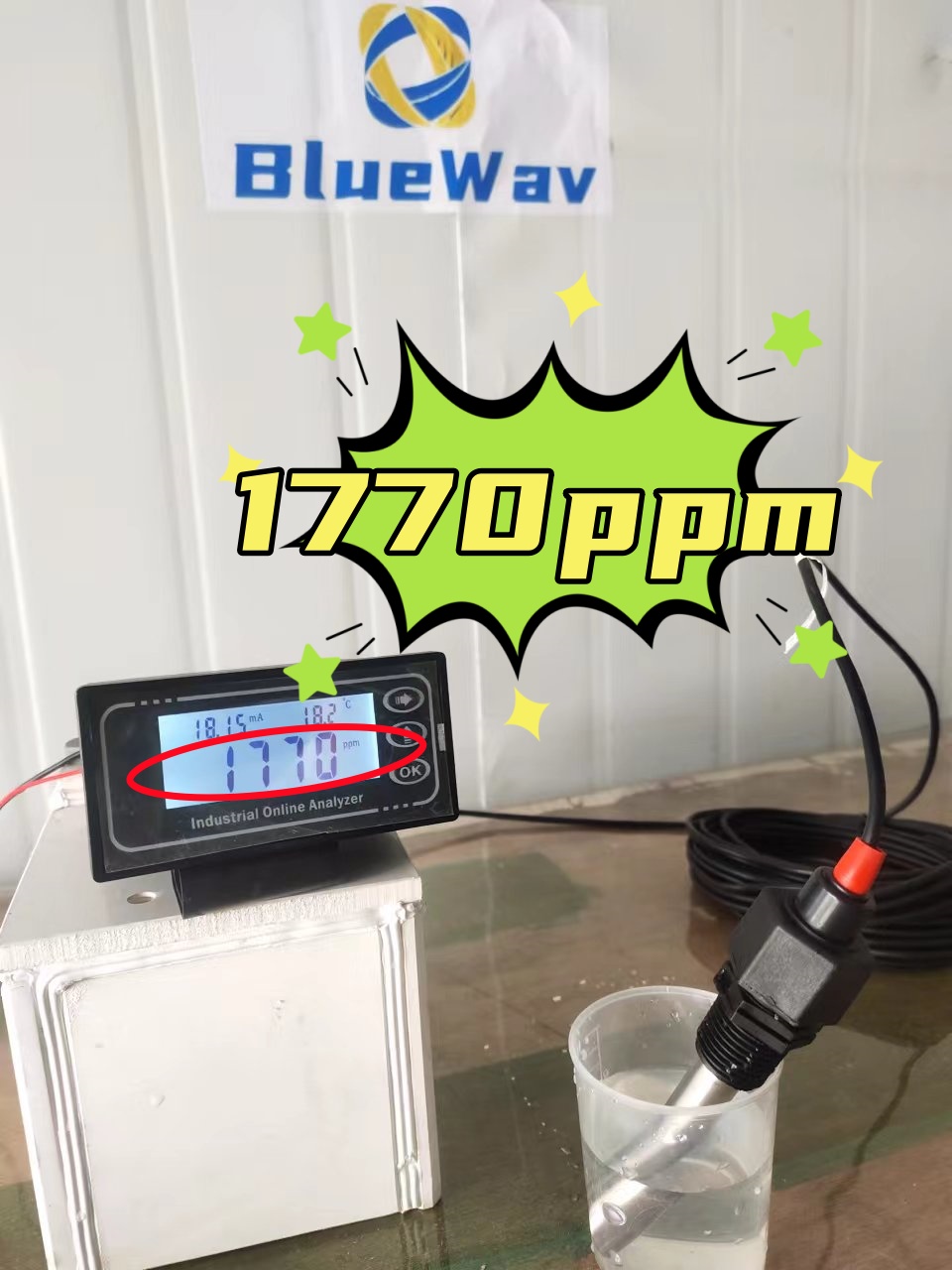

3- Real time online display HOCI Concentration(ppm), pH,Electrolytic current,Temperature

4- Warning and Alarm when problem occured
5- Continuous produing the disinfectant up to 24hours/day
