Products >> Online Chlorine Concentration Meter Gauge >> High Concentration Chlorine meter gauge RS485
APPLICATION

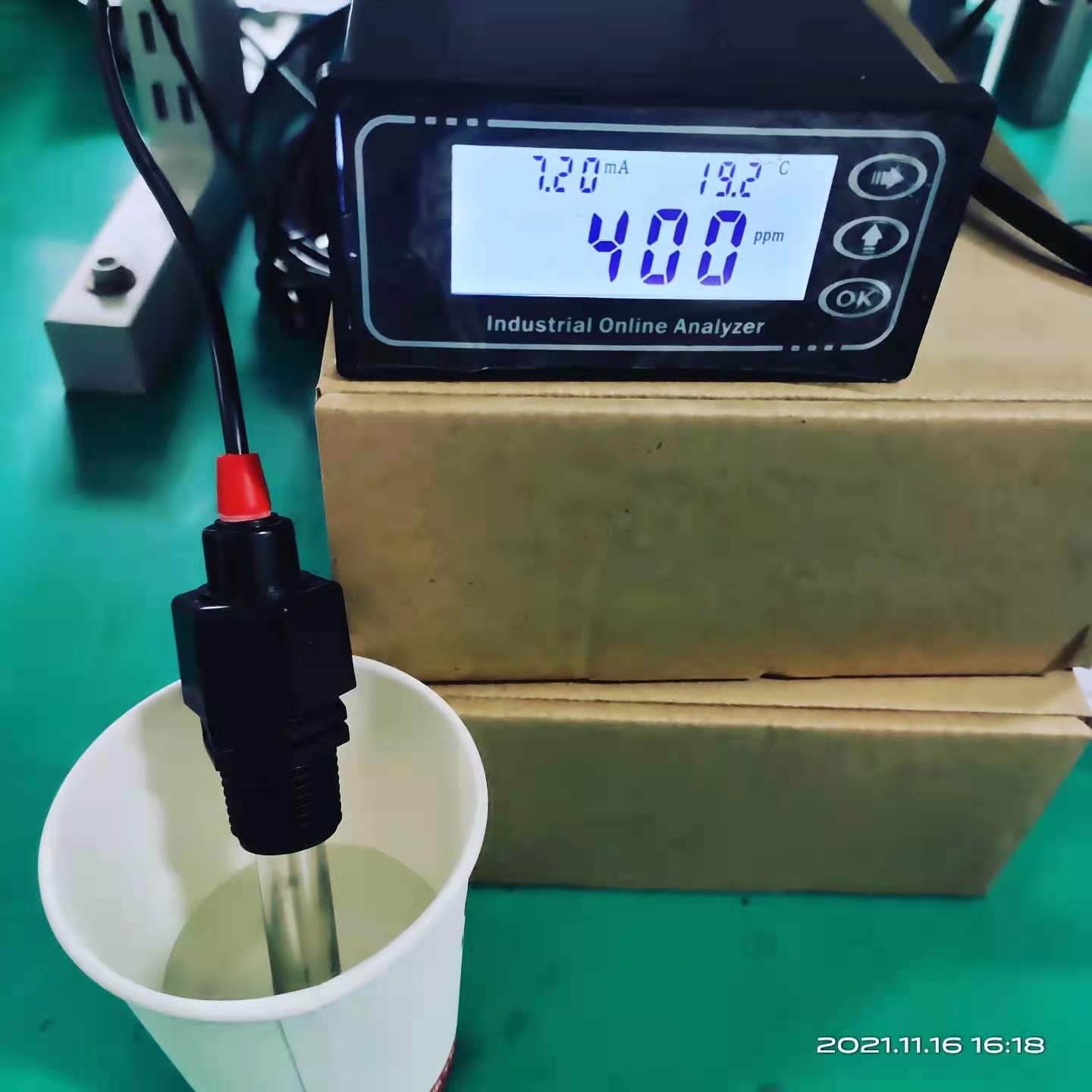

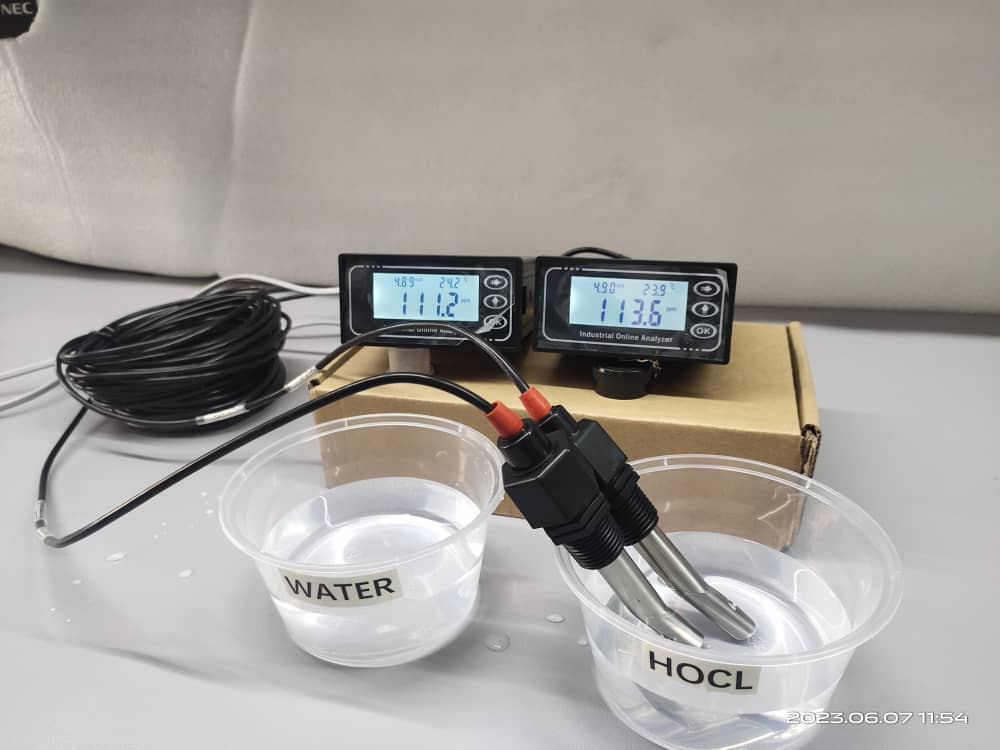

BEC2020 online chlorine concentration meter gauge contains ARM and MCU chips inside, and the signal measurement is realized by software automatic real-time limit tracking, which is a smart instrument, which further improves the measurement accuracy and stability. The meter is matched with a suitable measuring electrode to measure the concentration of hypochlorous acid and sodium hypochlorite.
SPECIFICATION
none
BEC2020 online chlorine concentration meter gauge contains ARM and MCU chips inside, and the signal measurement is realized by software automatic real-time limit tracking, which is a smart instrument, which further improves the measurement accuracy and stability. The meter is matched with a suitable measuring electrode to measure the concentration of hypochlorous acid and sodium hypochlorite.
SPECIFICATION
| Model | BEC2020 |
| Measuring range | 0-2000PPM 0-60℃ |
| Electrode wire length | Plug-in electrode length: 10 meters |
| Accuracy | ＜2%（F.S） |
| Medium Temperature | 0～ 60 ℃ |
| Medium Pressure | ＜0.5MPa |
| Display mode | LED |
| Temperature compensation | based on 25°C, automatic temperature compensation |
| Signal output | 4-20mA output; RS485 communication output |
| Alarm output | upper and lower limit relay alarm output |
| Power supply | AC 220V±10% 50Hz |
| Power consumption | ≤3W |
| Environmental conditions | (1)humidity:≤80%RH; (2)temperature:0～ 50 ℃ |
| Relevant dimensions | overall dimensions:48×96×100mm (L*W*H)opening dimensions:45×92mm (L*W*H) |
