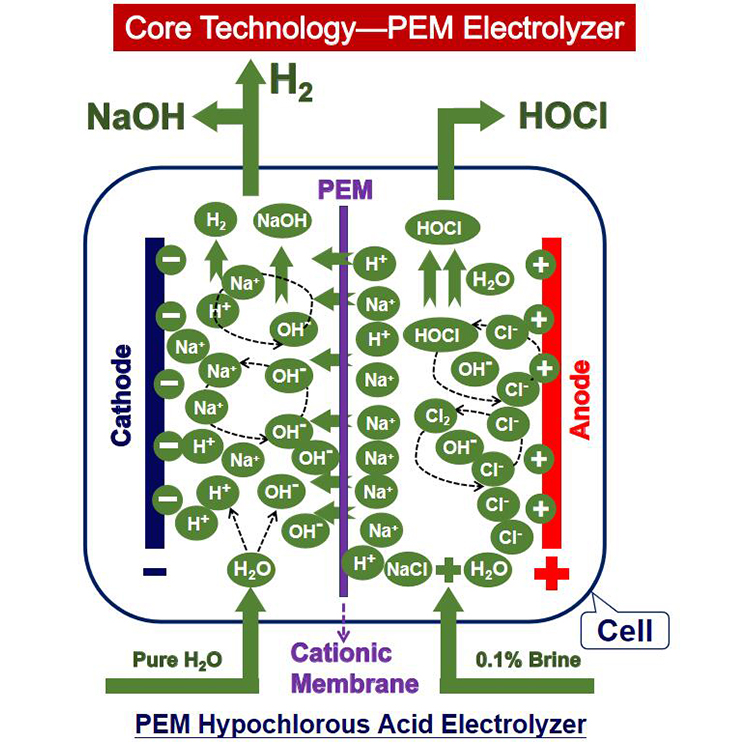

Principle of brine electrolysis

Our equipment electrolyzes a certain proportion of diluted brine (NaCl) in a special electrolytic module. In the advanced  membrane, the Anode side produce output pure HOCL/Anolyte/EOW Electrolyzed Oxidizing Water for top Medical Grade application.  clean HOCL disinfectant.



Applications

1. Skin disinfection

2. Oral disinfection

3. Nose disinfection
4. Wound disinfection
5. sterilize medical equipment
6. HOCL Medicine for sale






Machine  Parameters:

Dimensions	1000X750X1350mm
Land Size (Area)	3000X3000X2500mm
HOCL Concentration	50-200ppm,   500-1000ppm  Max. 10k ppm
Production Capacity	50L/H - 2000L/H
Natural Acidic (Range)	Neuture pH5.5 ~6.5 ORP: 1000-1200mV
Freezing Temperature	-20℃
HOCL EOW shelflife	>12 months
Power Distribution Req.	1KW-3KW
Concentration	50mg ~500mg Per Liter 100mg ~1000mg Per Liter



Main Features of Neuture HCIO Anolyte acid water Generator,
1- Manual and Full Automatic Working, only 1 person required.

2- LCD touch Screen operation, remote control by app on iPHONE/Android
3- Real time online display HOCI Concentration(ppm), pH,Electrolytic current,Temperature

4- Auto-Alarm Precuation
5- Continuous produing the disinfectant up to 24hours/day
