Products >> High Concentration Sodium_Hypochlorite_Plant >> High concentration sodium hypochlorite generator (Membrane electrolysis)

The high-concentration 10% 12% 13% 15% sodium hypochlorite generator

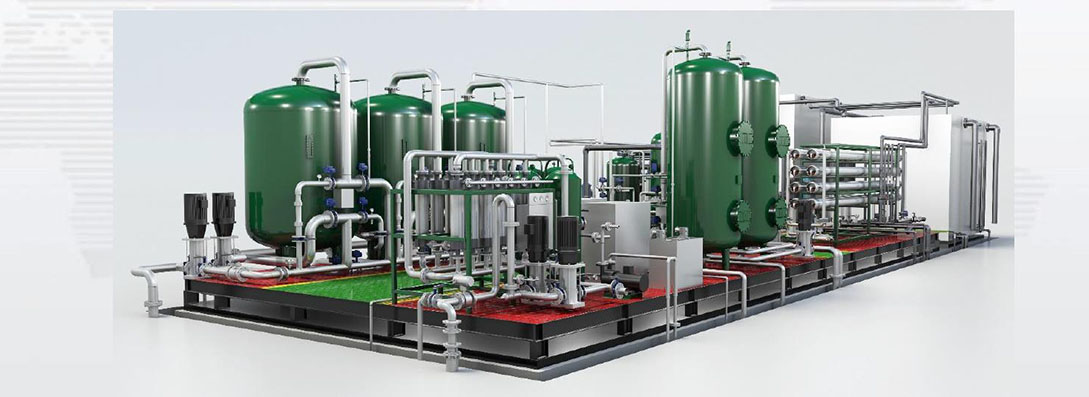

It is a kind of machine for producing high-concentration sodium hypochlorite solutions at site , greatly satisfies the need for high concentration sodium hypochlorite products, and solves transportation and storage problems. Membrane sodium hypochlorite generator manufactured by BLUEWAV Technology Co., Ltd. is the only technology company in China that can produce high concentration sodium hypochlorite products on site. Membrane electrolysis brine sodium hypochlorite generator can produce 4-15% high concentration sodium hypochlorite solution with a closed loop of dosing and producing fully automated operation.

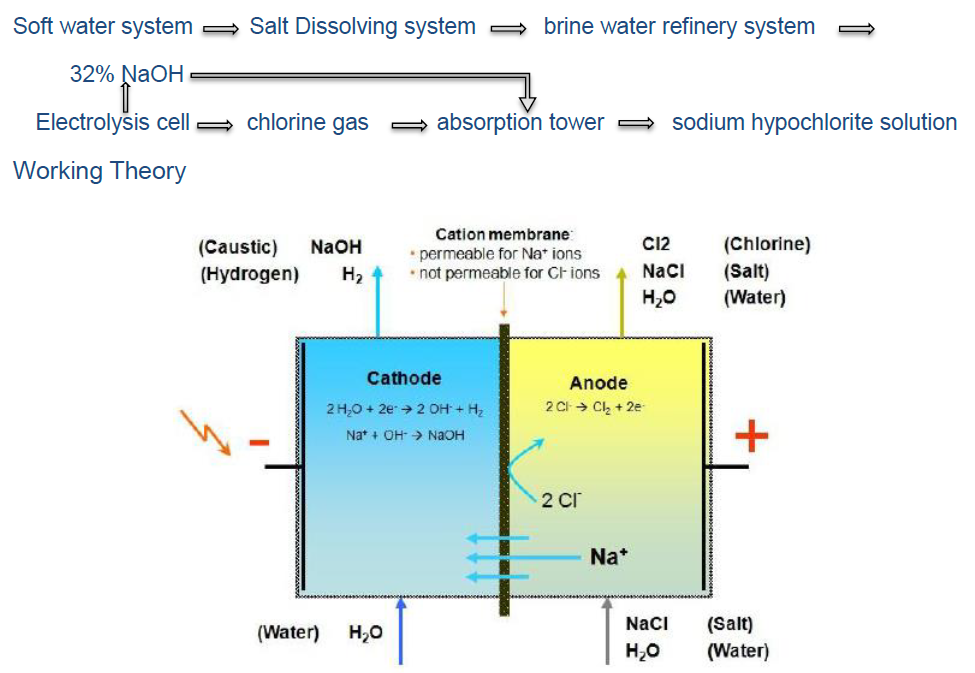

The basic principle of electrolytic reaction of membrane electrolysis cell is to convert electric energy into chemical energy and electrolyze brine to produce NaOH, Cl2 and H2 as shown in the above picture.
In the anode chamber of the cell (on the right side of the picture), the brine is ionized into Na+ and Cl- in the cell, wherein Na+ migrates to the cathode chamber (left side of the picture) through a selective ionic membrane under the action of charge. The lower Cl- generates chlorine gas under anodic electrolysis. The H2O ionization in the cathode chamber becomes H+ and OH-, wherein OH- is blocked by a selective cation membrane in the cathode chamber and Na+ from the anode chamber is combined to form product NaOH, and H+ generates hydrogen under cathodic electrolysis.

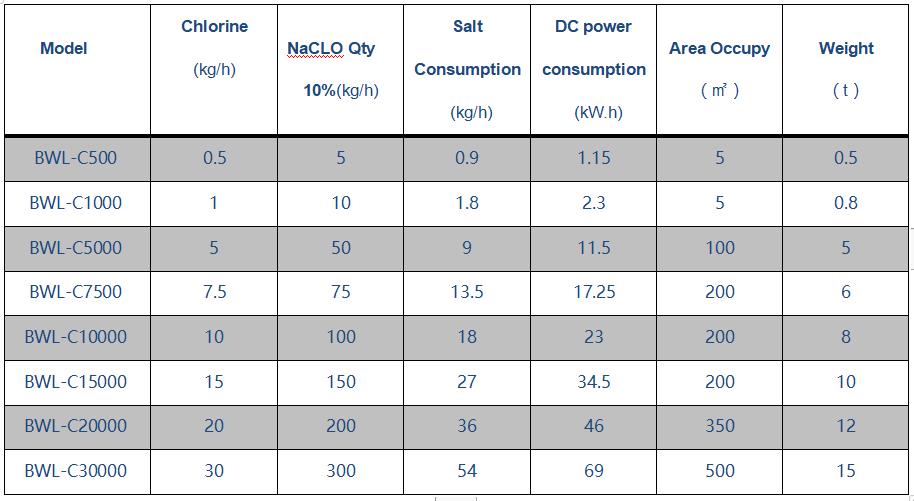

MODEL & SPECIFICATION

NOTE: Making special design for those capacity are over 30kg/hr.

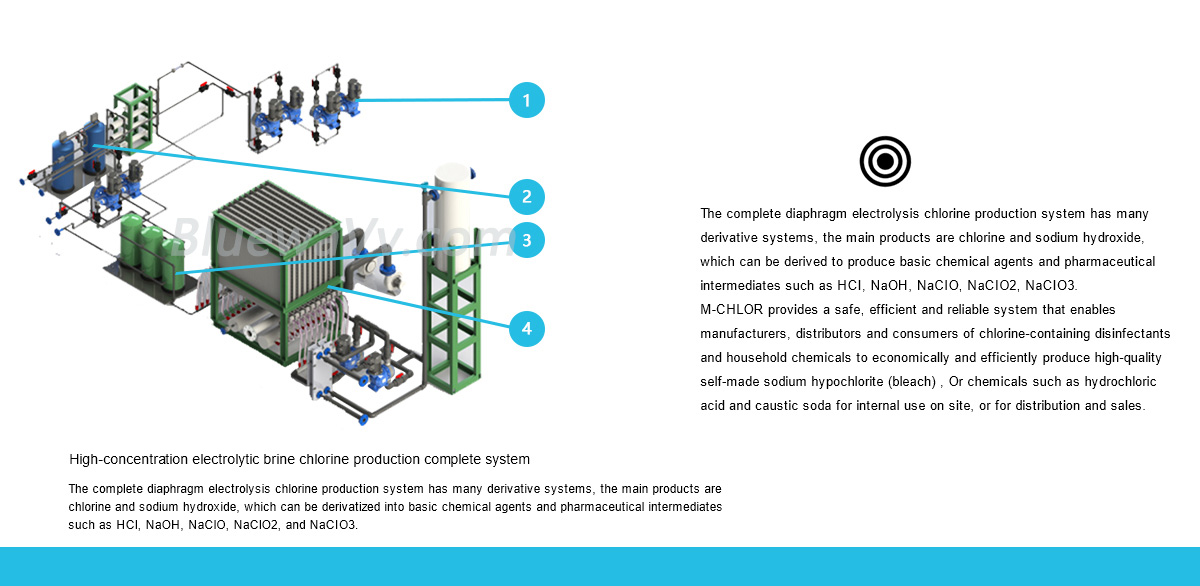

System composition

Saturated brine electrolysis complete system	Hydrochloric acid electrolysis complete system
Tap water purification system
Saturated brine refining module (primary and secondary refining)	Hydrochloric acid storage and recovery
Anolyte circulation	Hydrochloric acid storage and recovery
M-CHLOR Chlor-Alkali Film Series Diaphragm electrolysis module	M-CHLOR Hydrochloric Acid Membrane Series Diaphragm electrolysis module
Rectifier transformer	Rectifier transformer
Catholyte circulation
Comprehensive chemical dosing
HYPO-ACT series sodium hypochlorite synthesis module
Dechlorination and brine recovery module	Control System
Control System	Control System
Power distribution system	Power distribution system

Optional configuration: chlorine liquefaction, sodium hydroxide purification, caustic soda preparation, etc.

Application areas:

Chlor-alkali	Chlorine, sodium hydroxide, sodium hypochlorite preparation
Daily chemical	Household bleach and other related preparations
Electricity	Circulating water treatment
Medicine	Pharmaceutical intermediates
Municipal	Water purification plant
Municipal	Sewage treatment plant

Economic Indicators:

Salt consumption:	1.9	Kg / Kg.Cl₂
Power consumption:	2.8	kW.H / Kg.Cl₂

12% sodium hypochlorite generator CHINA&UAE
13% sodium hypochlorite generator CHINA&UAE
high-strength sodium hypochlorite generator CHINA&UAE
high-concentration Chlorine production system CHINA&UAE
