Products >> High Concentration Sodium_Hypochlorite_Plant >> High concentration sodium hypochlorite generator (Membrane electrolysis)


  • 5%-15% NaCLO
  • Salt consumption: 1.8kg/ Kg.Cl2
  • Electricity consumption: 3.8kw.H / Kg.Cl2
  • Multiple Outputs Products: NACLO, NAOH, CL2, H2

How it works

High-concentration Strong sodium hypochlorite plant system is aimed at small-scale chlor-alkali chemical industry, water treatment plants , bleach factory and swimming pool disinfection. The system has many derivatives, the main products are chlorine and sodium hydroxide, which can be derived to produce HCl, NaOH, NaClO, NaClO2, NaClO3 and other basic chemicals and pharmaceutical intermediates.


BLUEWAV BSSH model provide a safe, efficient and reliable system that enables manufacturers, distributors and consumers of 5%,10%,15% sodium hypochlorite chlorine-containing disinfectants and household chemicals to cost-effectively produce high quality do-it-yourself sodium hypochlorite (bleach), or chemicals such as hydrochloric acid and caustic soda for their own internal use on site, or for distribution and sale.

The high-concentration 5% 8% 10% 12% 13% 15% sodium hypochlorite  generator
high-concentration sodium hypochlorite system is based on upgraded chlorine alkaline technology , it is capable of producing high-concentration sodium hypochlorite solutions at site , greatly satisfies the need for high concentration sodium hypochlorite products, and solves explosive-risk  transportation and storage for safe target. Membrane electrolysis brine sodium hypochlorite generator can produce 4%-15% high concentration sodium hypochlorite solution with a closed loop of dosing and producing fully automated operation.


NOTE: Making special design for those capacity are over 30kg/hr.


System composition


Saturated brine electrolysis complete system

Hydrochloric acid electrolysis complete system

Tap water purification system

Saturated brine refining module (primary and secondary refining)

Hydrochloric acid storage and recovery

Anolyte circulation

M-CHLOR Chlor-Alkali Film Series

Diaphragm electrolysis module


M-CHLOR Hydrochloric Acid Membrane Series

Diaphragm electrolysis module


Rectifier transformer

Rectifier transformer

Catholyte circulation

Comprehensive chemical dosing

HYPO-ACT series sodium hypochlorite synthesis module

Dechlorination and brine recovery module

Control System

Control System

Power distribution system

Power distribution system


Optional configuration: chlorine liquefaction, sodium hydroxide purification, caustic soda preparation, etc.


Application areas:


Chlorine, sodium hydroxide, sodium hypochlorite preparation

Daily chemical

Household bleach and other related preparations


Circulating water treatment


Pharmaceutical intermediates


Water purification plant

Sewage treatment plant

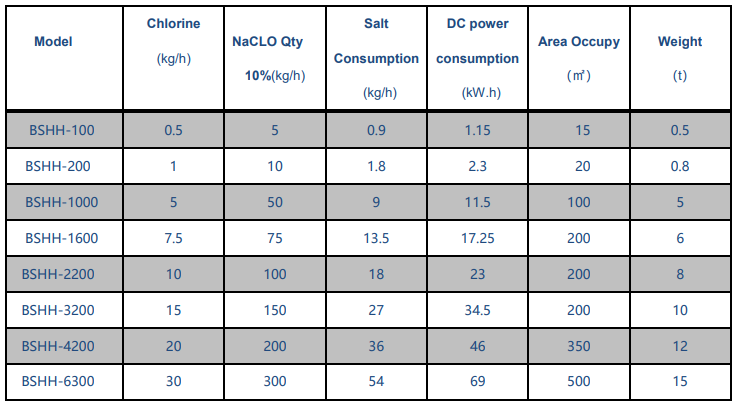

Economic Indicators:

Salt consumption:


Kg / Kg.Cl2

Power consumption:


kW.H / Kg.Cl2

12% sodium hypochlorite  generator CHINA&UAE
13% 15% sodium hypochlorite  generator CHINA&UAE
high-strength sodium hypochlorite  generator CHINA&UAE
