operation.

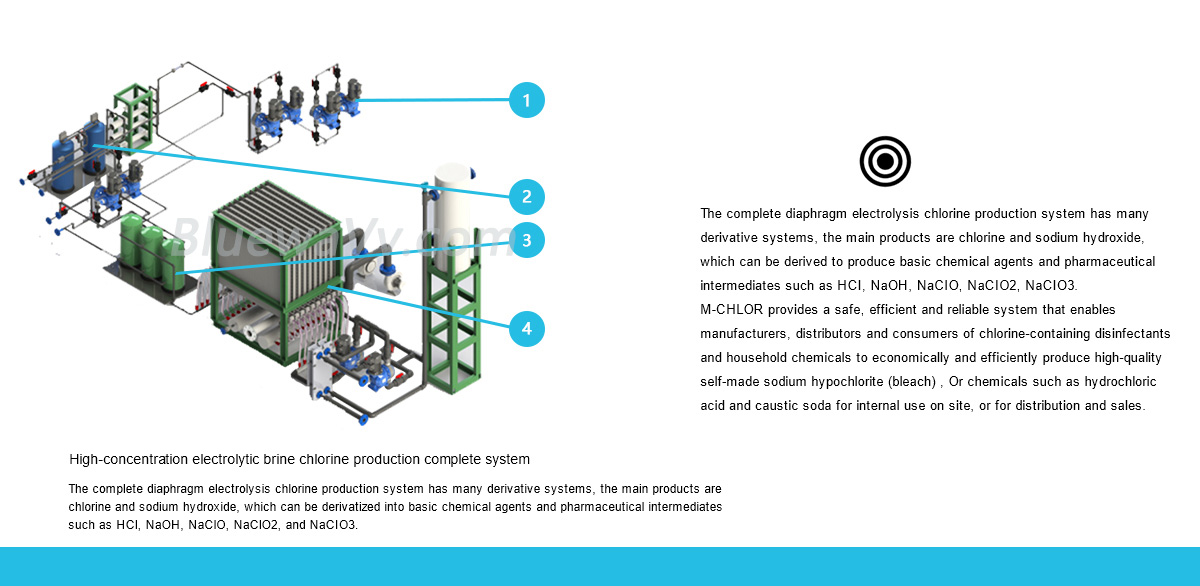

System Technological Process

The whole production flow of the 10%-15% sodium hypochlorite generator adopts closed-loop automatic circulation, divided into 6 standardized continuous working sections, each link with online monitoring sensors to ensure stable liquid concentration output:

1. Saturated Brine Preparation Unit

Industrial refined salt is put into the salt dissolving tank, tap water is automatically added according to the liquid level sensor, stirring equipment continuously mixes to prepare saturated brine (25% NaCl concentration). The system automatically supplements salt and water when brine liquid level is low.

2. Multi-stage Precision Filtration Section

Saturated brine is transported by anti-corrosion pump into two-stage precision filter. The primary filter removes coarse salt residues and suspended impurities, the secondary fine filter intercepts calcium and magnesium ions precipitates, extend core electrode service life.

3. Constant Flow Brine Dosing & Buffer

Purified saturated brine flows into the buffer tank, the flowmeter transmits real-time data to PLC control cabinet, the metering pump stably delivers fixed-flow brine into each electrolytic cell group.

4. Ion Membrane Electrolysis Core Reaction

Brine enters sealed ion-exchange membrane electrolytic cell, stable DC current output by high-efficiency digital rectifier triggers electrolytic reaction. The ion membrane separates anode and cathode areas: chlorine gas generates on anode, sodium hydroxide forms on cathode. Two substances fully circulate and react inside the closed absorption tower, generating 10%-15% high concentration sodium hypochlorite stock solution. Hydrogen by-product is collected by sealed pipeline and safely diluted & exhausted outdoors after explosion-proof treatment.

5. Concentrated Liquid Storage & Automatic Dosing

Freshly produced high-titer NaClO liquid automatically flows into anti-corrosion concentrated liquid storage tank, equipped with liquid level alarm and constant temperature protection to slow down solution decomposition. The system supports automatic quantitative dosing linkage with external water circulation pipeline, real-time adjusting disinfectant adding volume based on online residual chlorine detector signal.

6. Automatic Online Pickling Maintenance Loop

The system reserves independent acid washing pipeline loop. When electrode scaling affects electrolysis efficiency, the PLC automatically starts the pickling program: dilute hydrochloric acid circulates inside electrolytic cell to remove carbonate scaling, no need to disassemble the cell manually, greatly reducing equipment maintenance labor cost.

Economic operation technical indicators

thing	Standard parameters
Raw material input	Industrial salt, tap water, electricity
Main products	5%~15% high concentration sodium hypochlorite
Adjustable concentration range	5%–15% NaClO
Core Reaction Components	Ion exchange membrane electrolyzer
Salt consumption	2 kg/CL2.kg
DC power consumption	2.5 kWh/CL2.kg

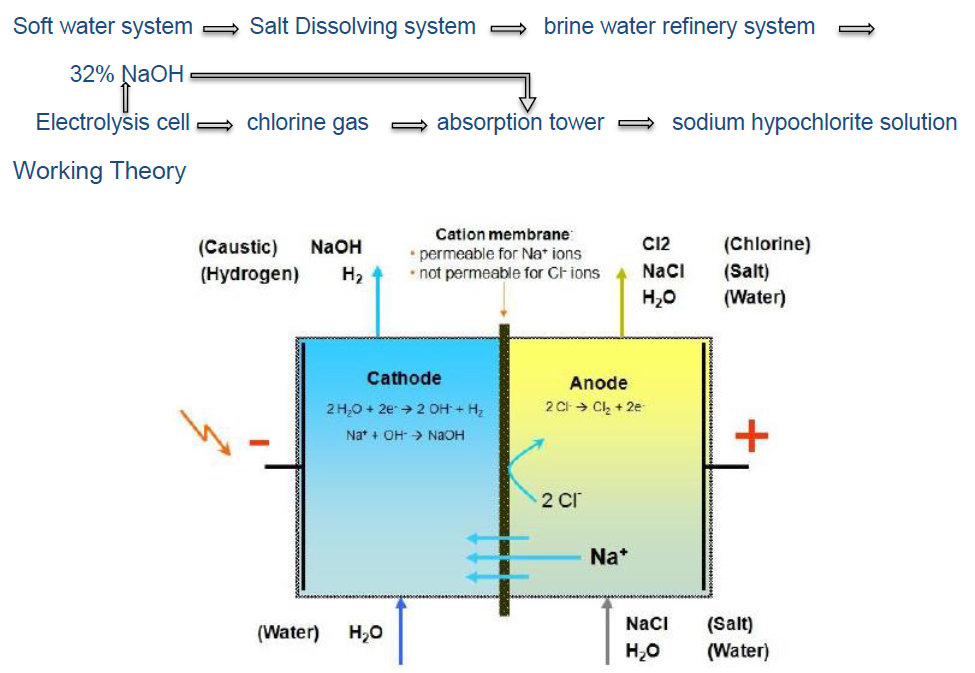

The basic principle of electrolytic reaction of membrane electrolysis cell is to convert electric energy into chemical energy and electrolyze brine to produce NaOH, Cl2 and H2 as shown in the above picture.

In the anode chamber of the cell (on the right side of the picture), the brine is ionized into Na+ and Cl- in the cell, wherein Na+ migrates to the cathode chamber (left side of the picture) through a selective ionic membrane under the action of charge. The lower Cl- generates chlorine gas under anodic electrolysis. The H2O ionization in the cathode chamber becomes H+ and OH-, wherein OH- is blocked by a selective cation membrane in the cathode chamber and Na+ from the anode chamber is combined to form product NaOH, and H+ generates hydrogen under cathodic electrolysis.

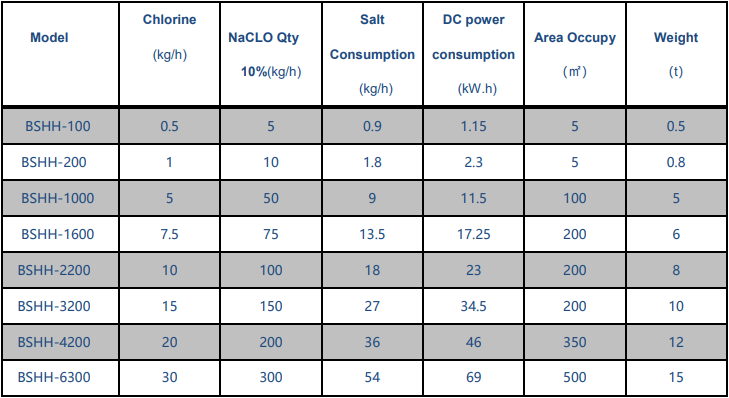

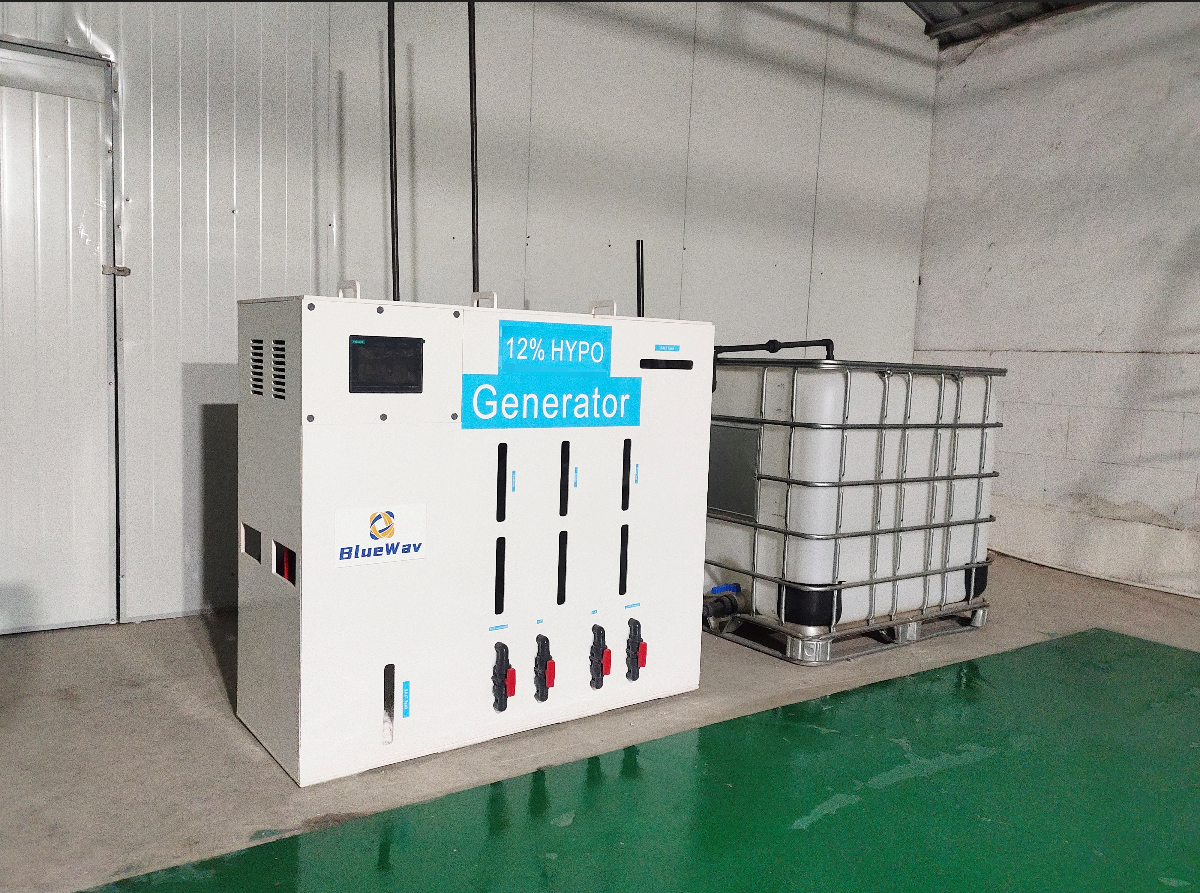

MODEL & SPECIFICATION


NOTE: Making special design for those capacity are over 30kg/hr.

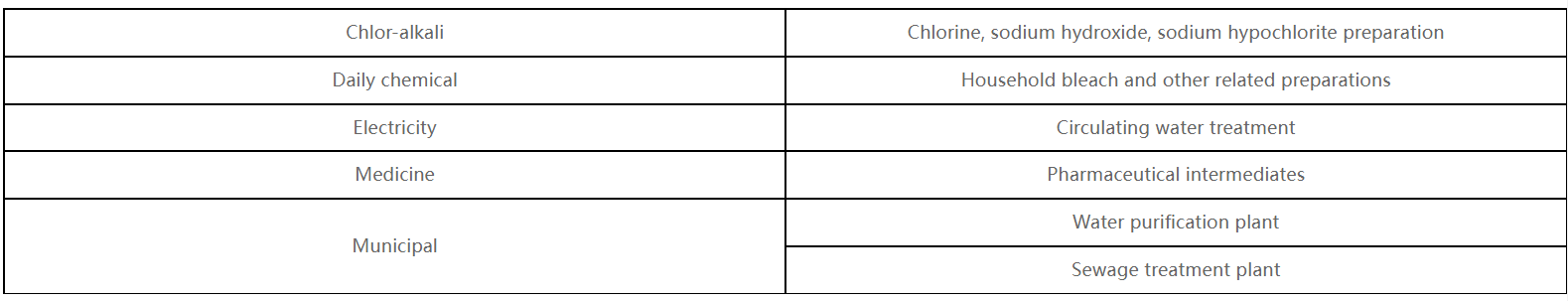

Application areas:
